DL Series
DOME LIGHTS
- High uniformity
- High intensity
- Suitable for imaging detail on reflective curved or uneven surfaces
- Diffuse indirect light
- Reverse polarity protection
DOME LIGHTS
DOWNLOAD
 DL Datasheet |
DL Series
DOME LIGHTS
- High uniformity
- High intensity
- Suitable for imaging detail on reflective curved or uneven surfaces
- Diffuse indirect light
- Reverse polarity protection

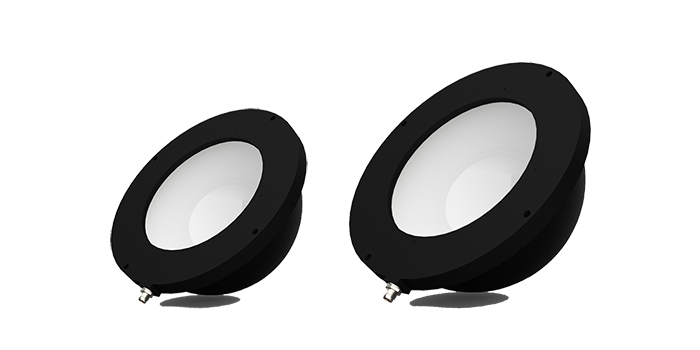

Dome illuminators are a source of diffuse and uniform light. Its wide and solid lighting angle supports the image of curved surfaces.
| MODEL | COLOR | OUTSIDE DIAMETER | LIGHT WINDOW AREA |
| DL075-W57 | White | Ø 129 mm | Ø 75 mm |
| DL075-625 | Red | Ø 129 mm | Ø 75 mm |
| DL075-530 | Green | Ø 129 mm | Ø 75 mm |
| DL075-470 | Blue | Ø 129 mm | Ø 75 mm |
| DL116-W57 | White | Ø 174 mm | Ø 116 mm |
| DL116-625 | Red | Ø 174 mm | Ø 116 mm |
| DL116-530 | Green | Ø 174 mm | Ø 116 mm |
| DL116-470 | Blue | Ø 174 mm | Ø 116 mm |
APPLICATIONS

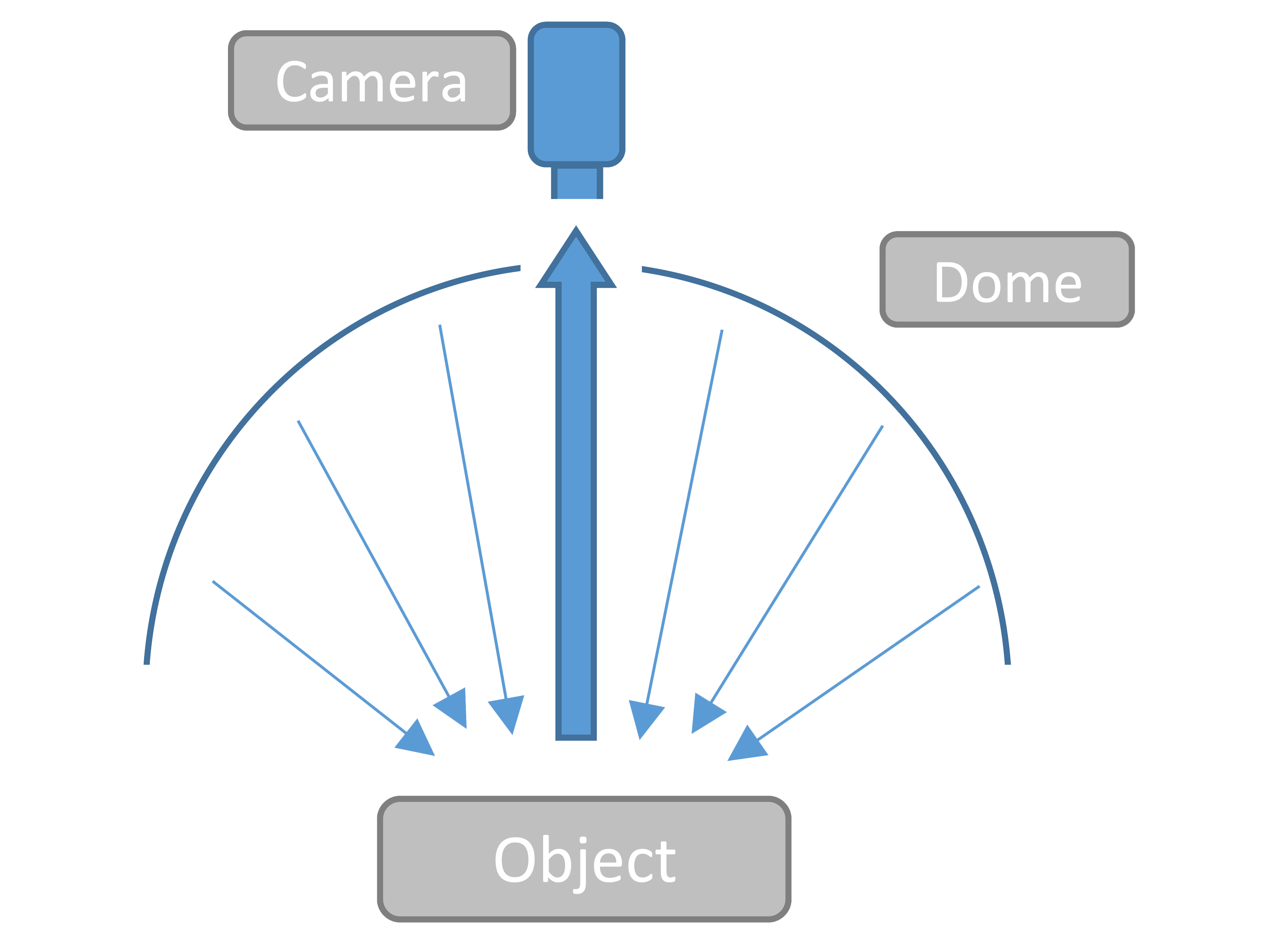

Illuminates from the axis of the camera in all directions, a large amount of uniform light and thus eliminating glare and shadows.
- Eliminating reflections shadows, ideal choice for glossy and curved surfaces
- Inspection of curved and uneven surface
- Inspection of highly reflective metal and glass surfaces
CAD DRAWINGS FOR THE DL
PART NUMBER CODING
Example
DL116-625
Dome Light ø116mm, Red
DL075-W57
Dome Light ø75mm, White
ACCESSORIES
AC001

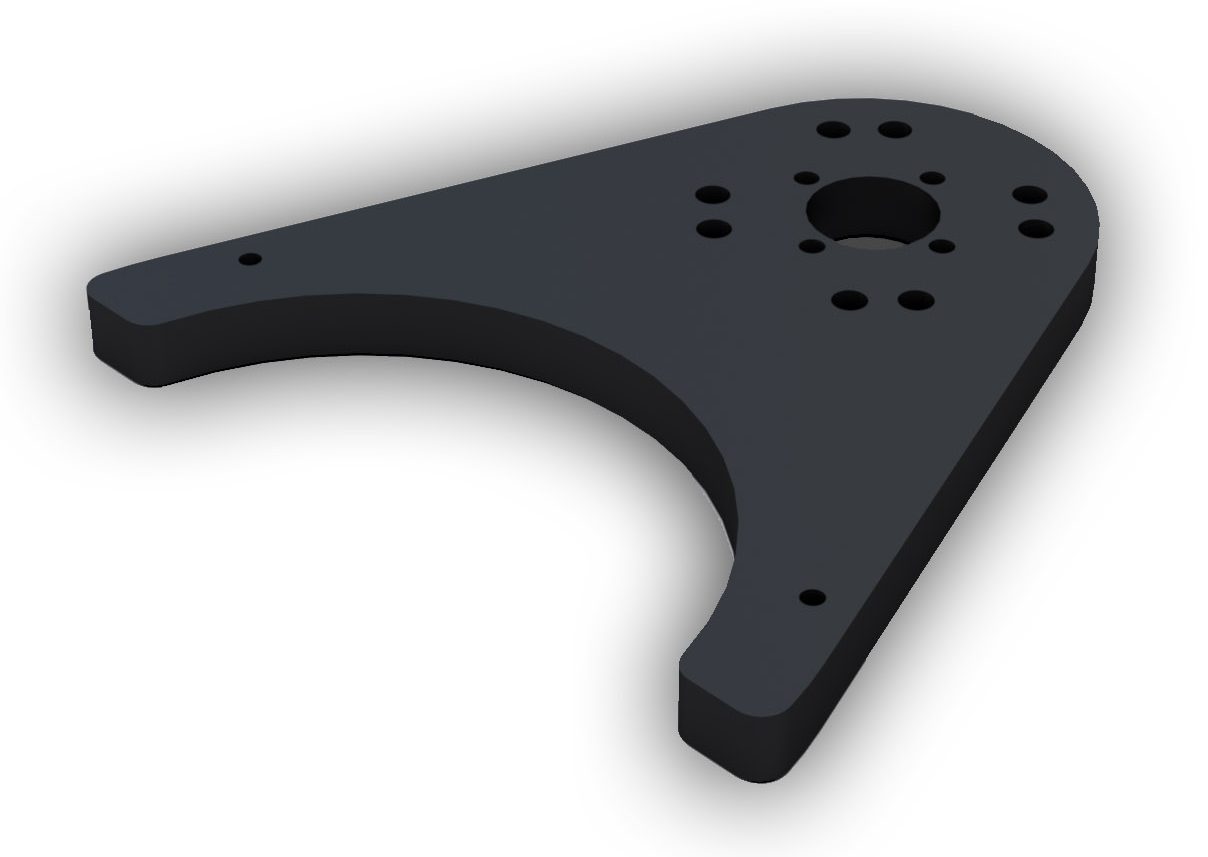

Aluminum mounting bracket.
High power solid state relay to trigger the light.
Power cable
Female – M8-3p connector
AC001
Aluminum mounting bracket.
High power solid state relay to trigger the light.
Power cable
Female – M8-3p connector
