BL Series
BAR LIGHTS
- High uniformity
- High intensity
- Diffuse direct light
- Reverse polarity protection
- Available in three different lengths.
- Special sizes in 250mm increments.
- Driver, trigger y dimmer PWM integrados.
- Optional Analog Dimmer
DOWNLOAD
| BL Series Datasheet |
General purpose direct illumination and super wide beam angle, as a result large areas can be illuminated diffusely. Can be used individually or in combination with other bars in different angles and orientations.

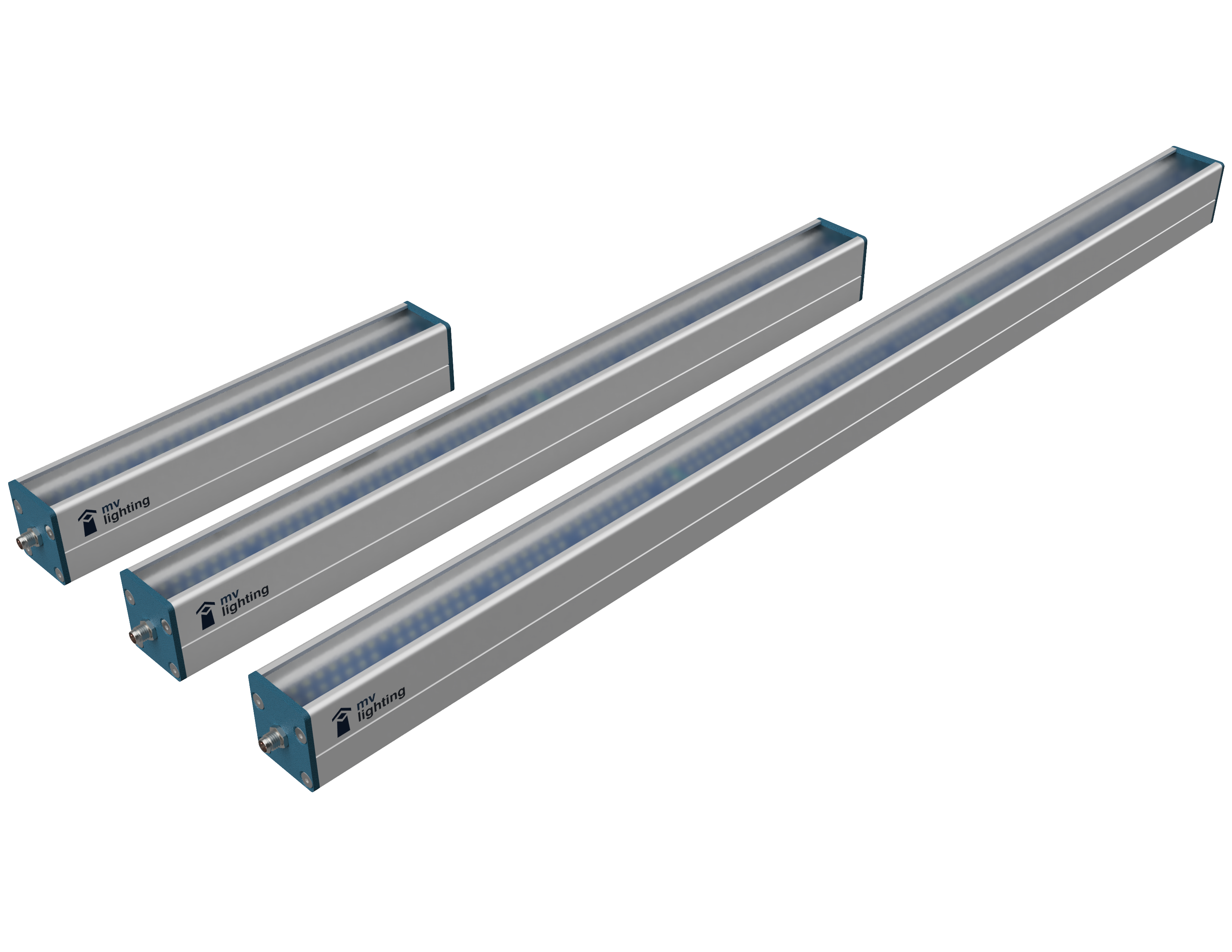

| MODEL | COLOR | LENGTH | LIGHT WINDOW AREA |
| BL0250-W57 | White | 250 mm | 248×28.54 mm |
| BL0500-W57 | White | 500 mm | 494×28.54 mm |
| BL0750-W57 | White | 750 mm | 741×28.54 mm |
APPLICATIONS

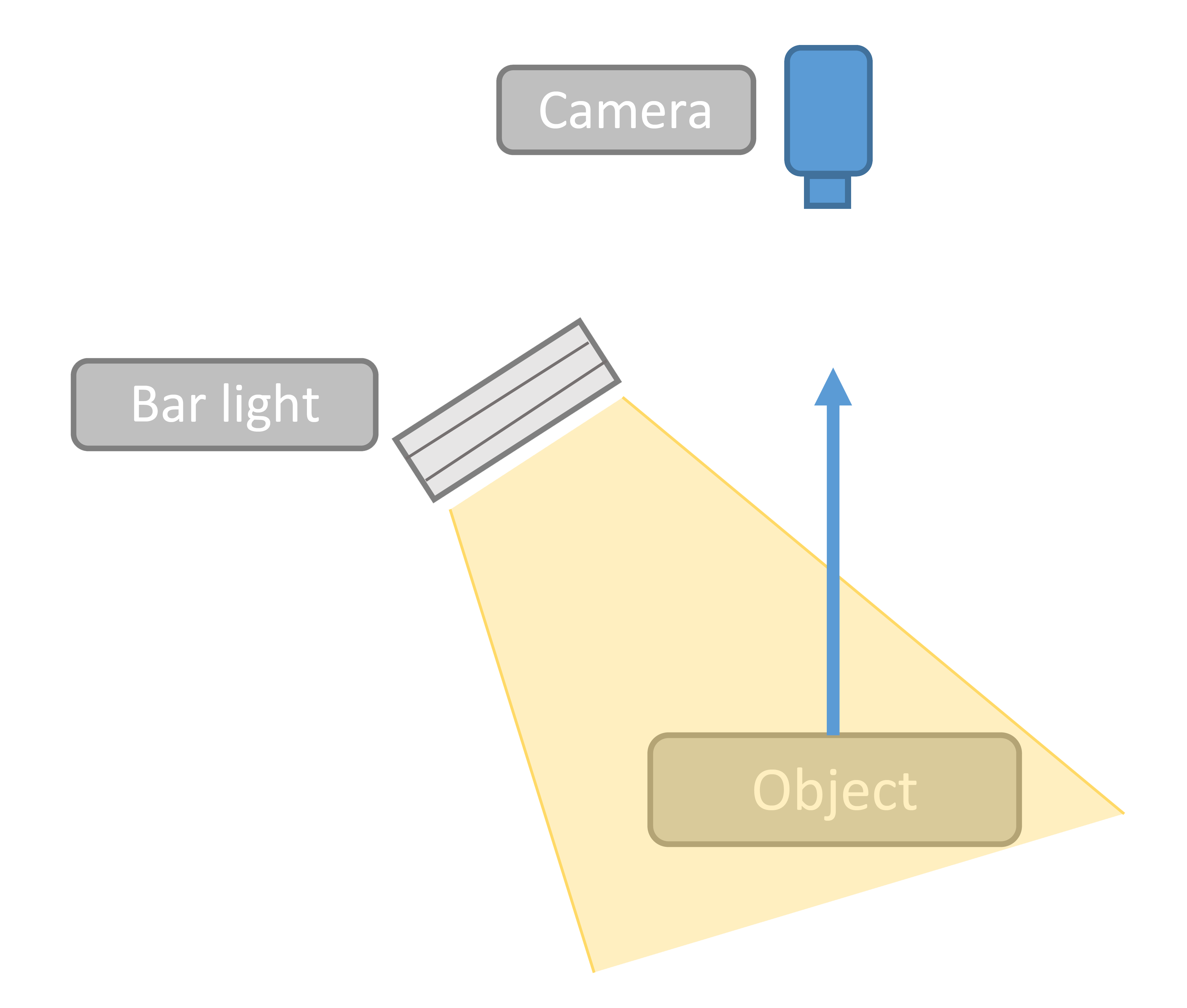

Useful for both dark fields (creating shadows and mirror reflections) and bright field lighting, adjustments for operating distances and the angle provides good image contrast on diffuse surfaces.
- Locate or measure external dimensions
- Illuminate flat, diffused surfaces
- Product defect inspection
- Label placement verification
- Non-diffuse incident (front) lighting
- Dark field or bright field lighting
CAD DRAWINGS FOR THE BL
MOUNTING

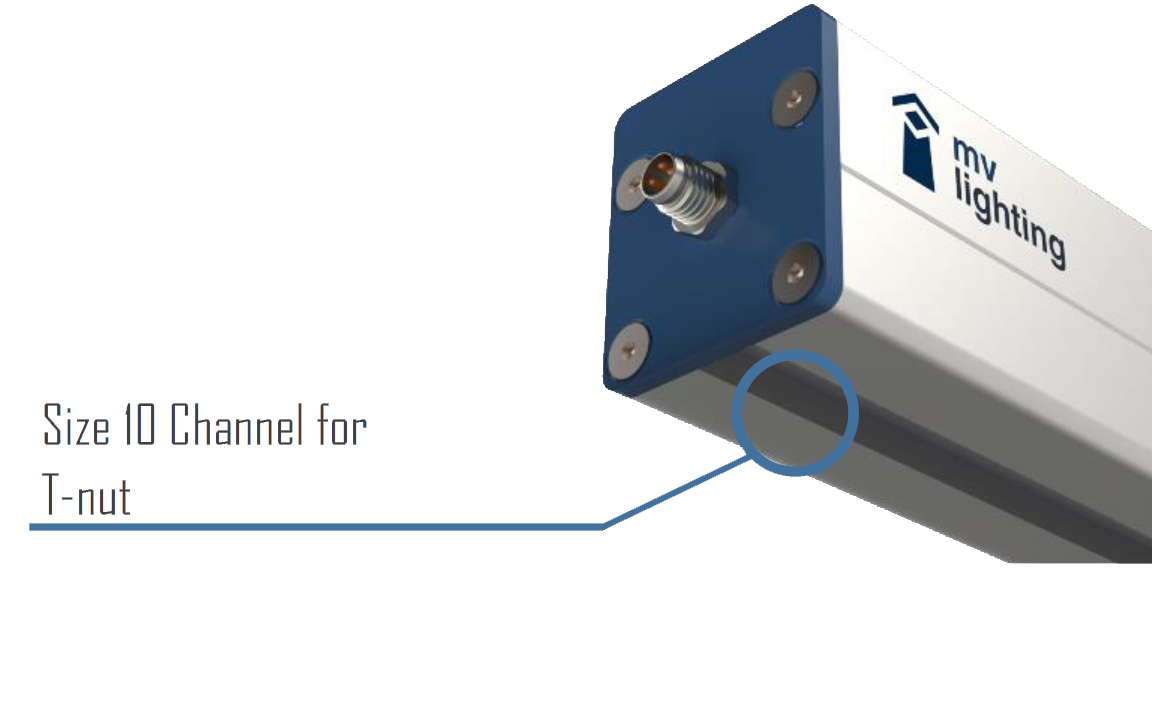

MV Lighting recommends the Drop-in T-nuts for channel 10 to mount a BL bar light.
WINDOWS

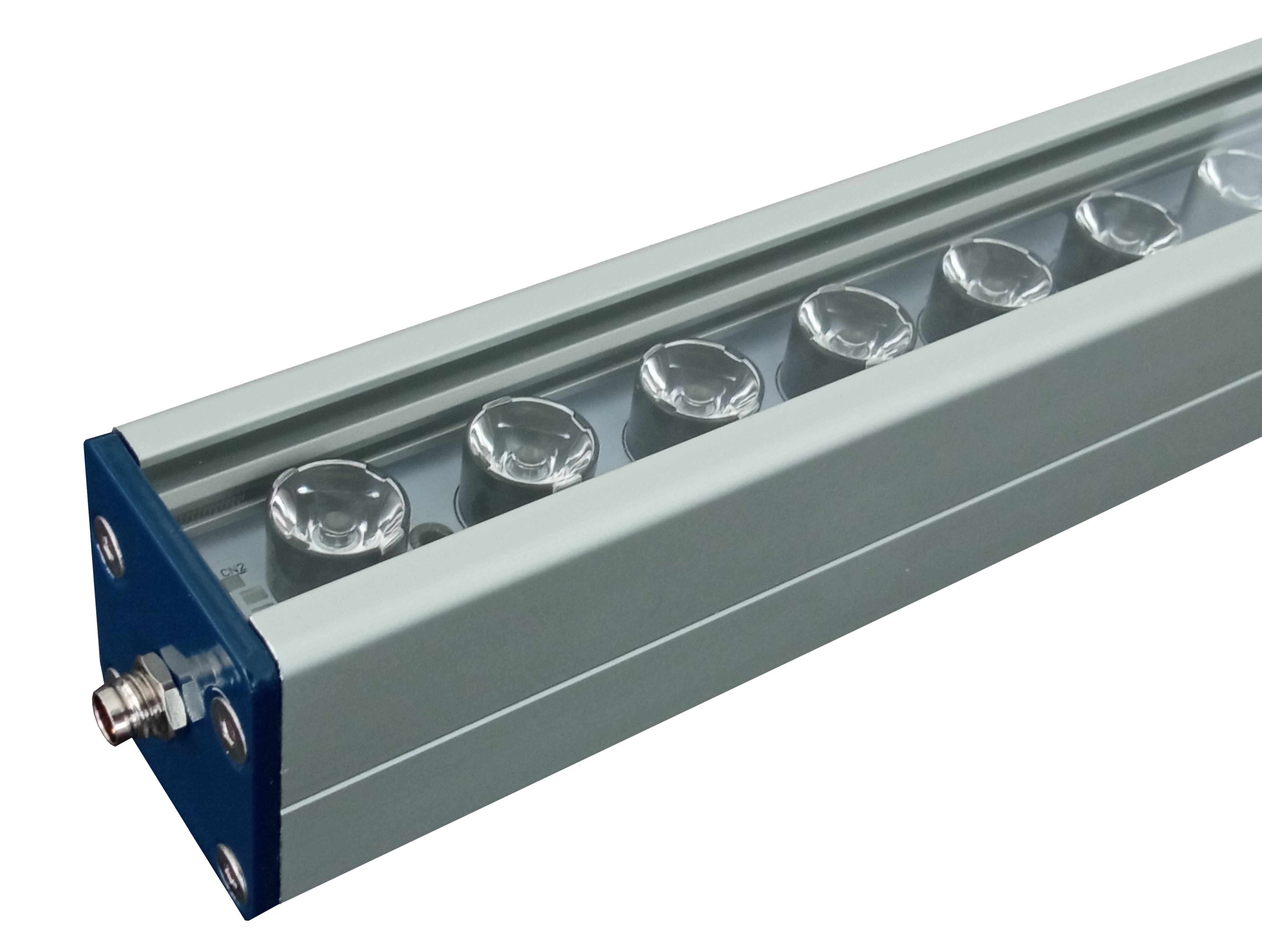

Transparent
Semi-diffuse

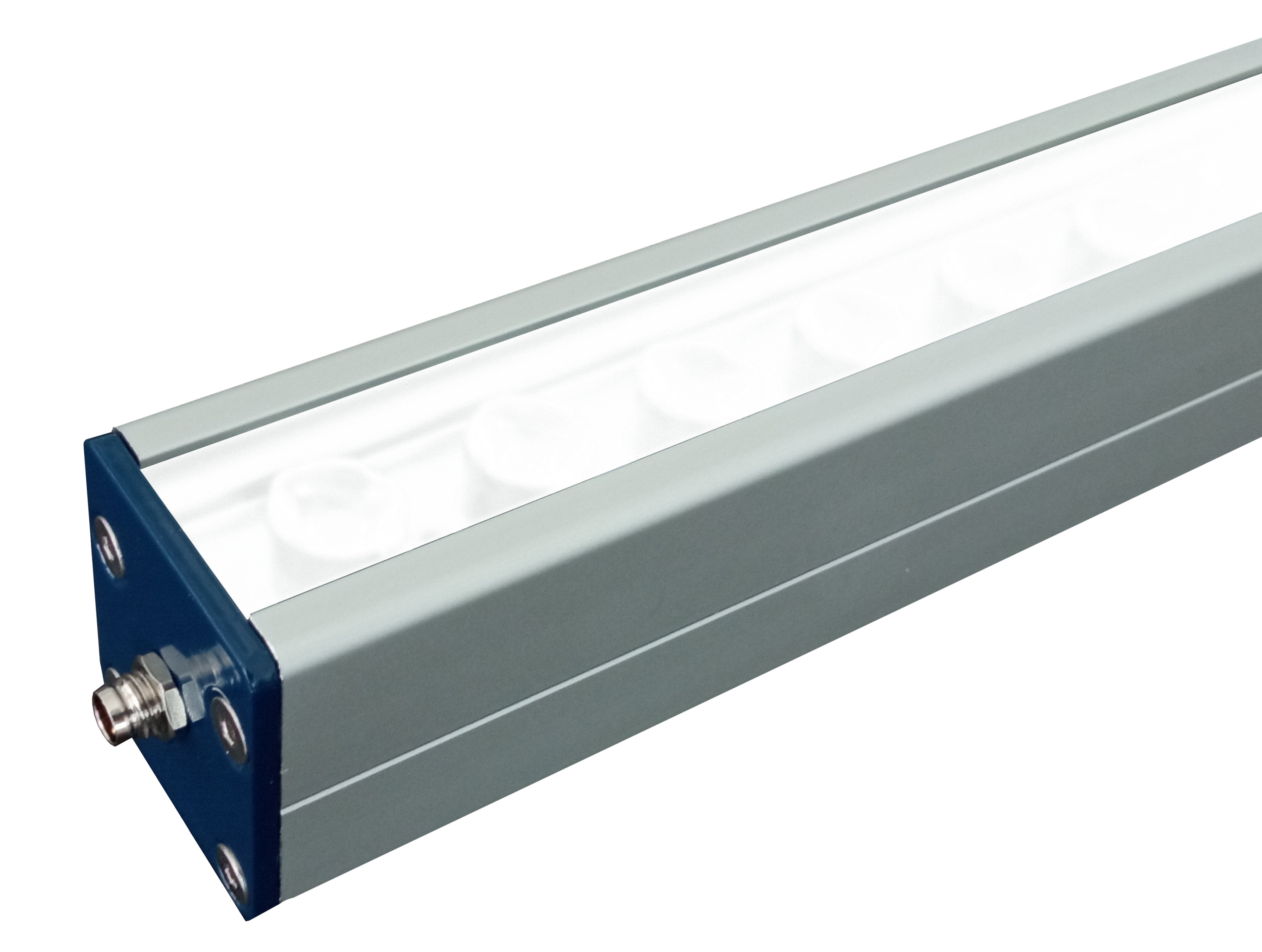

Opaline

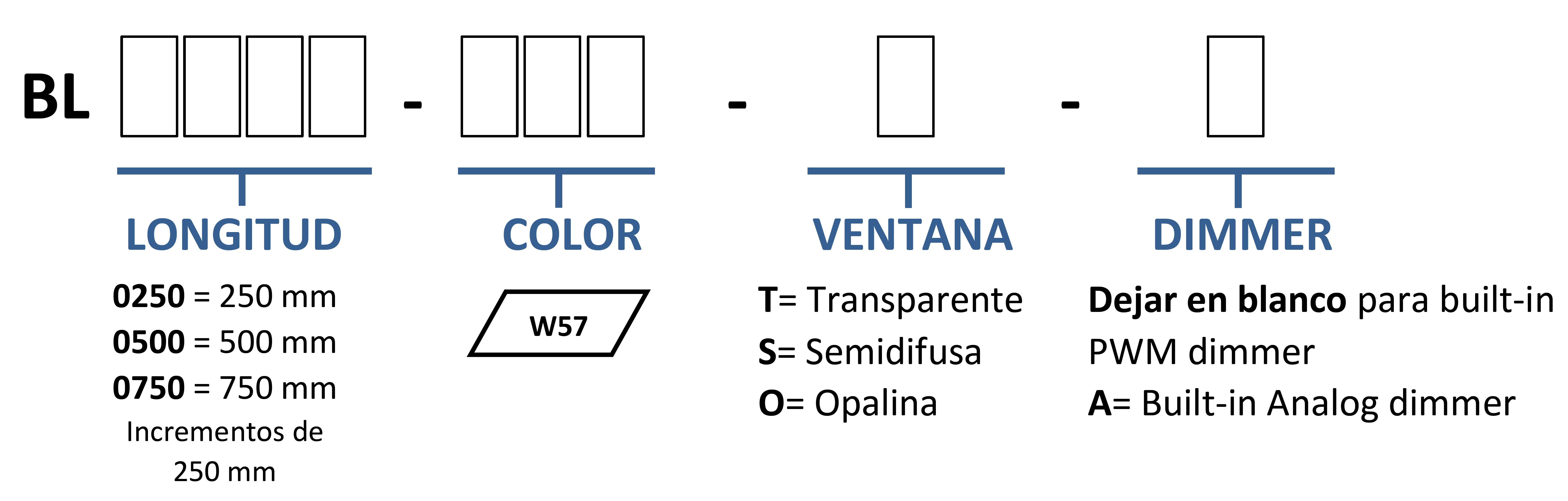

PART NUMBER CODING
Example
BL0250-W57-T
Bar, 250 mm, White, transparent window, Built-in driver & trigger & PWM dimmer
Bar, 1500 mm, Red, semi-diffuse window, Built-in driver & trigger & Analog dimmer
Bar, 1500 mm, Red, semi-diffuse window, Built-in driver & trigger & Analog dimmer
ACCESSORIES
High power solid state relay to trigger the light.
Power cable
Female - M8-3p connector
High power solid state relay to trigger the light.
Power cable
Female - M8-3p connector
